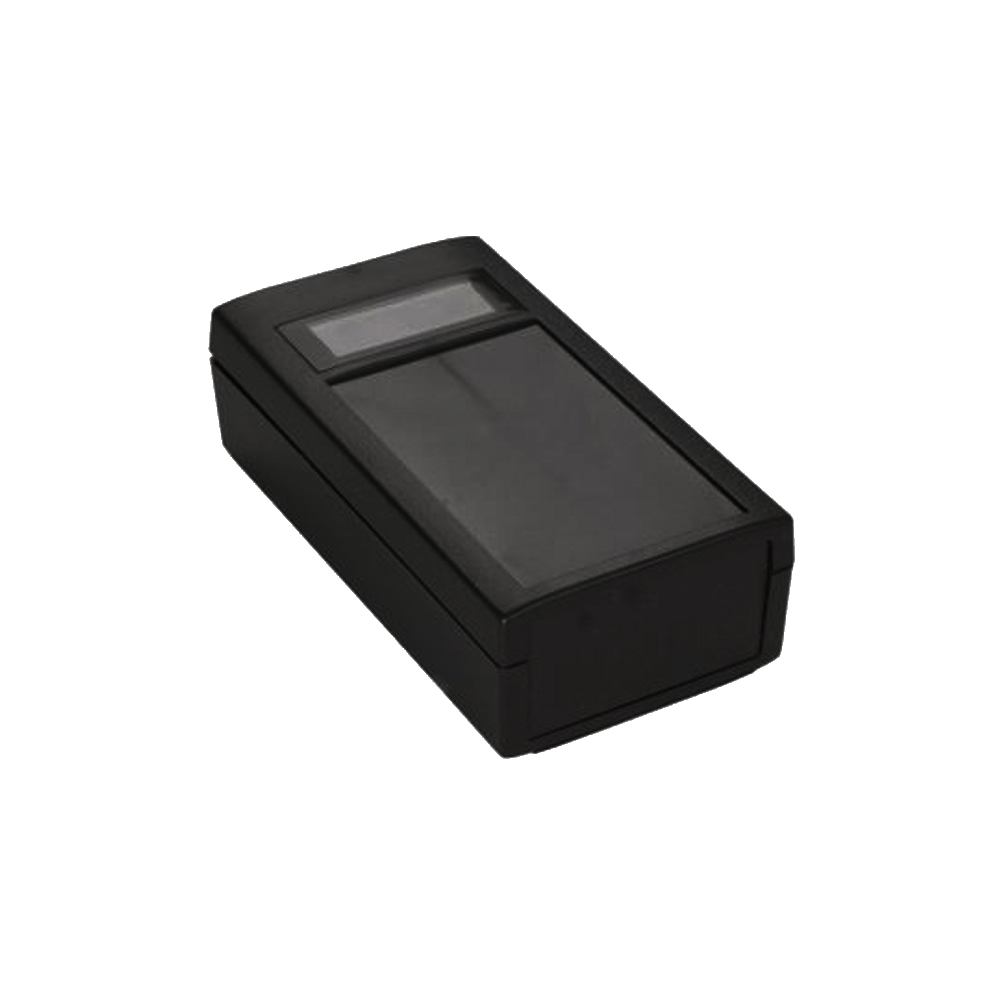

Hand-Held Veronex Case 150 x 80 x 45mm with Membrane recess and LCD window in Black Part No. 75-237432

Hand-Held Case Size 3 45mm High with Membrane recess and LCD window in Black Fire Retardant ABS Size 150x80x45

£21.64 ex VAT

Excluding VAT

(Price per pack of 1)

Part Number 75-237432 Categories Handheld, Plastic Enclosures

30 in stock

Designed for portable applications including data acquisition, field tests and measurements.
All plastic parts are UL94-V0 flame retardant ABS.
Case outer surface designed to reduce surface damage.
Size 2 and 3 cases feature a recessed membrane keypad area for 74mm X 40mm (size 2 case ) or 96mm X 60mm(size 3 case) membranes.
Size 2 and 3 cases also feature a cut-out that accepts LCD displays.
Alternative colours available – email us for details
Battery compartments with a sliding cover available.
Battery compartments accept a variety of battery sizes – holders available separately.
The Size 1 units are supplied with a Belt Clip Fitted as standard.
Belt clip fittings for size 2 ; 3 units are available order separately.
Supplied with 4 Case fixing screws, 4 Self Tapping screws for PCB mounting.
Cases and end panels can be machined or printed to your requirements – email us details for a quotation.

Price per pack of:

Colour:

Black

Material:

ABS UL94-VO

Type:

Veronex

Max Length:

150mm

Max Width:

80mm

Max Height:

45mm

PCB Length:

140mm

PCB Width:

70mm

PCB Height:

40mm

Assembly Method:

Screws

Options:

i/o plastic panels|LCD panel|Membrane area

Attributes:

IP64

from 6 pcs.	from 11 pcs.	from 21 pcs.	from 51 pcs.
£20.56 + VAT	£19.48 + VAT	£18.40 + VAT	£17.32 + VAT
