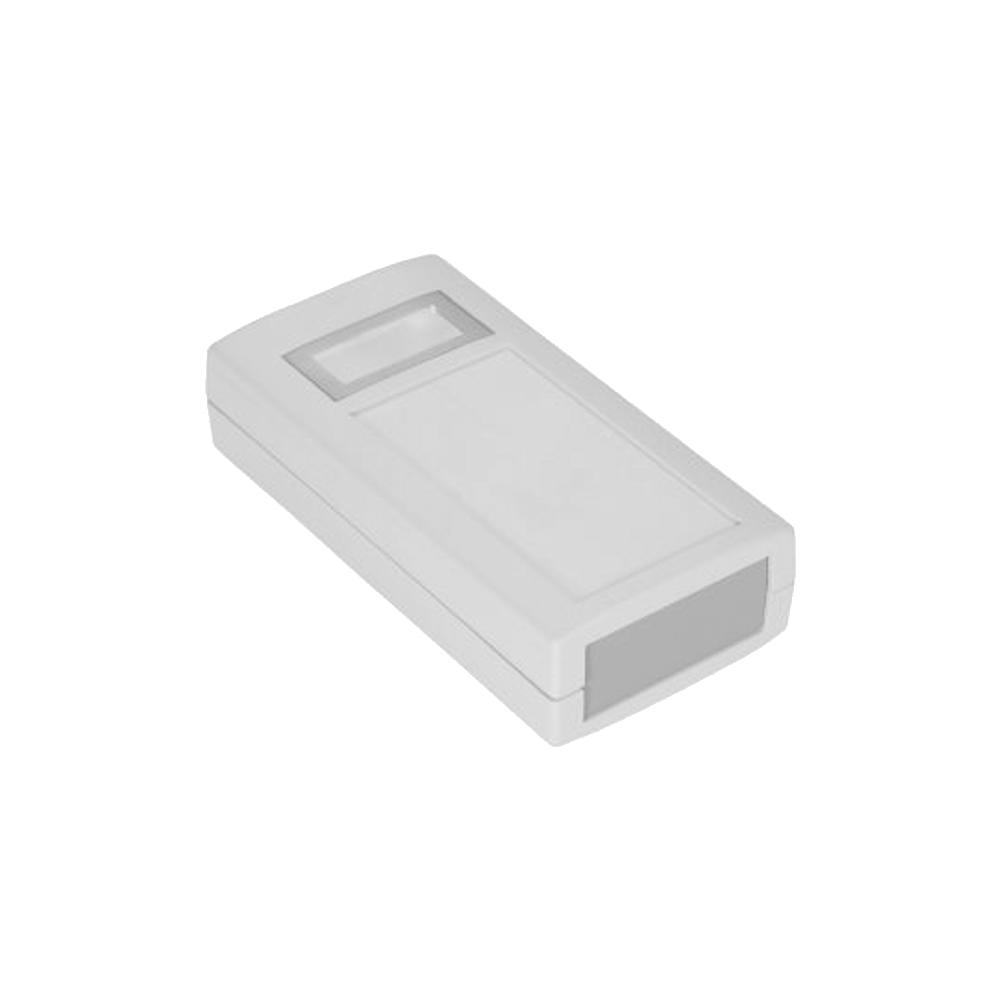

Hand-Held Veronex Case 120 x 60 x 30mm with Membrane recess and LCD window in Grey Part No. 75-228113

Hand Held Case in Grey Fire Retardant ABS Size 120x60x30 with membrane recess and LCD window.

£14.38 ex VAT

Excluding VAT

(Price per pack of 1)

Part Number 75-228113 Categories Handheld, Plastic Enclosures

Designed for portable applications including data acquisition, field tests and measurements.
All plastic parts are UL94-V0 flame retardant ABS.
Case outer surface designed to reduce surface damage.
Size 2 and 3 cases feature a recessed membrane keypad area for 74mm X 40mm (size 2 case ) or 96mm X 60mm(size 3 case) membranes.
Size 2 and 3 cases also feature a cut-out that accepts LCD displays.
Alternative colours available – email us for details
Battery compartments with a sliding cover available.
Battery compartments accept a variety of battery sizes – holders available separately.
The Size 1 units are supplied with a Belt Clip Fitted as standard.
Belt clip fittings for size 2 ; 3 units are available order separately.
Supplied with 4 Case fixing screws, 4 Self Tapping screws for PCB mounting.
Cases and end panels can be machined or printed to your requirements – email us details for a quotation.

Price per pack of:

Colour:

Grey

Material:

ABS UL94-VO

Type:

Veronex

Max Length:

120mm

Max Width:

60mm

Max Height:

30mm

PCB Length:

100mm

PCB Width:

50mm

PCB Height:

25mm

Assembly Method:

Screws

Options:

i/o plastic panels|LCD panel|Membrane area

Attributes:

IP64

from 6 pcs.	from 11 pcs.	from 21 pcs.	from 51 pcs.
£13.66 + VAT	£12.95 + VAT	£12.22 + VAT	£11.50 + VAT
