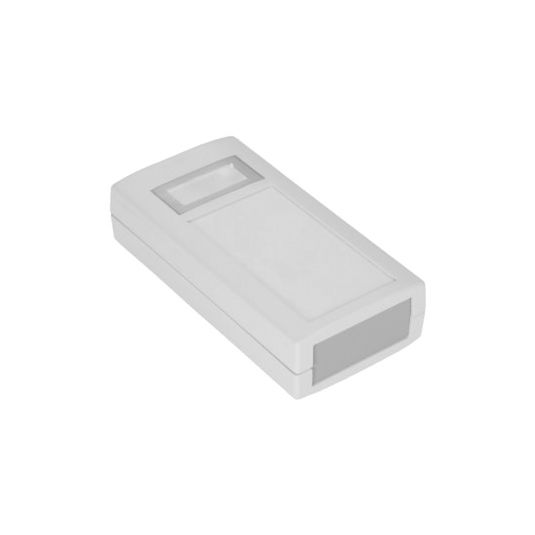

Hand-Held Veronex Case 120 x 60 x 30mm with Membrane recess and LCD window in Grey part number 75-228113

Hand Held Case in Grey Fire Retardant ABS Size 120x60x30 with membrane recess and LCD window.

$14.38

Availability: In stock

Part Number

75-228113

(Price per pack of

Product Description

Designed for portable applications including data acquisition, field tests and measurements.
All plastic parts are UL94-V0 flame retardant ABS.
Case outer surface designed to reduce surface damage.
Size 2 and 3 cases feature a recessed membrane keypad area for 74mm X 40mm (size 2 case ) or 96mm X 60mm(size 3 case) membranes.
Size 2 and 3 cases also feature a cut-out that accepts LCD displays.
Alternative colours available - email us for details
Battery compartments with a sliding cover available.
Battery compartments accept a variety of battery sizes - holders available separately.
The Size 1 units are supplied with a Belt Clip Fitted as standard.
Belt clip fittings for size 2 ; 3 units are available order separately.
Supplied with 4 Case fixing screws, 4 Self Tapping screws for PCB mounting.
Cases and end panels can be machined or printed to your requirements - email us details for a quotation.

More Information
Pack Size	1
Type	Veronex
Assembly Method	Screws
Features	i/o plastic panels, LCD panel, Membrane area
PCB Width	50mm
PCB Length	100mm
PCB Height	25mm
Width mm	60mm
Colour	Grey

Volume Pricing

Please contact us for larger volume pricing.
