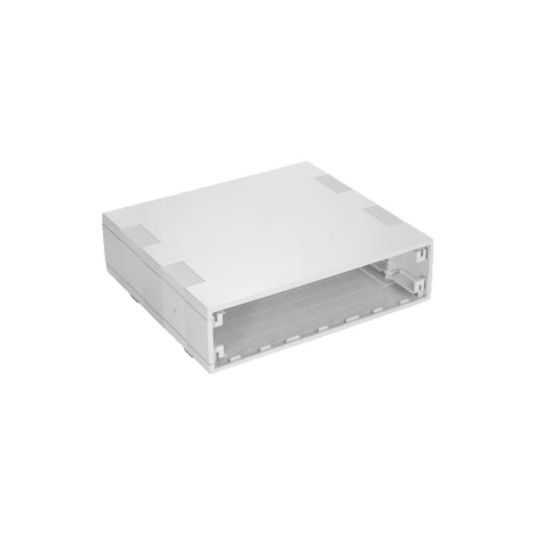

Portable Equipment Case IBX Style B Size 275x250x50 part number 500-54750

Portable Equipment Case IBX Style B moulded in UL94 rated ABS in light Grey Size 275x250x50

$53.47

Availability: In stock

Part Number

500-54750

(Price per pack of

Product Description

Strong and easily assembled enclosures moulded in Fire Retardant ABS, for circuit boards, power supplies, interconnections, controls and displays.
4 individual sizes in heights from 25mm to 100mm in 25mm increments.
Three largest size Cases are suitable for either desktop ;Type A or portable ;Type B applications.
Portable version accept a strong tilt and swivel carrying handle ordered separately and can be locked in increments of 30 degrees.
The Aluminium Handle cross bar also incorporates a label recess.
Horizontal and vertical PCB guides are incorporated internally.
Horizontal guides being suitable for 6U Eurocard of either 160 or 220mm depths.
Four self-adhesive PCB mounting clips are supplied with each case positioned accurately using the reference grid moulded into the case.
A range of plastic sloping front panels and captured or screw-on anodised aluminium panels are available separately.
Each IBX case comes supplied with four moulded non-slip feet which allow units to be safely stacked on each other.
This range can be moulded in a range of other standard colours if required
These cases can be modified to your requirements - email us details for a quotation
Can be used with our standard case accessories

Volume Pricing

Please contact us for larger volume pricing.
