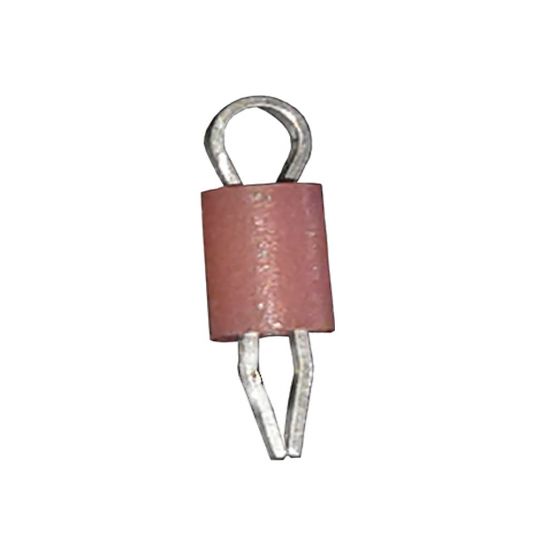

20-313153 PCB Test Point - Loop Terminal Assembly for 1.02mm dia. Hole - Pink
PCB Test Point Terminal for 1.02 Nominal Holes used for attaching leads for test scopes and probes with scintered glass insulator this component is for boards 1.6mm thick - colour Pink
$17.80
Availability:
In stock
Part Number
20-313153
(Price per pack of
100
- PCB Test Point Terminal assembly designed for attachment of scope probes etc.
- The compliant pin design allows the terminal to be inserted without damaging the hole plating.
- The terminal will remain in place even when the board is inverted for soldering.
- The sintered glass bead has a recommended maximum working temperature of 475C. This exceeds all current standard temperature profile requirements.
- Assemblies are available in 8 standard colours.
- Material Specifications: Bead: Boro Silicate Sintered Glass, Wire Loop Material: Phosphor Bronze (BS2873) Plating: Electroplated Bright Tin: 3.0-5.0 micron.
| Pack Size | 100 |
|---|---|
| Colour | Pink |
| Hole Size | 1.02mm |
| PCB thickness | <1.6mm |
Volume Pricing
Please contact us for larger volume pricing.
| Quantity | Price | |
|---|---|---|
| Inc VAT | Ex VAT | |
| 6+ | 20.29 | 16.91 |
| 11+ | 19.22 | 16.02 |
| 26+ | 18.7 | 15.58 |
| 51+ | 18.16 | 15.13 |
