Portable Equipment IDAS Clamshell case Size 220x230x70 with carry handle Part No. 75-201088

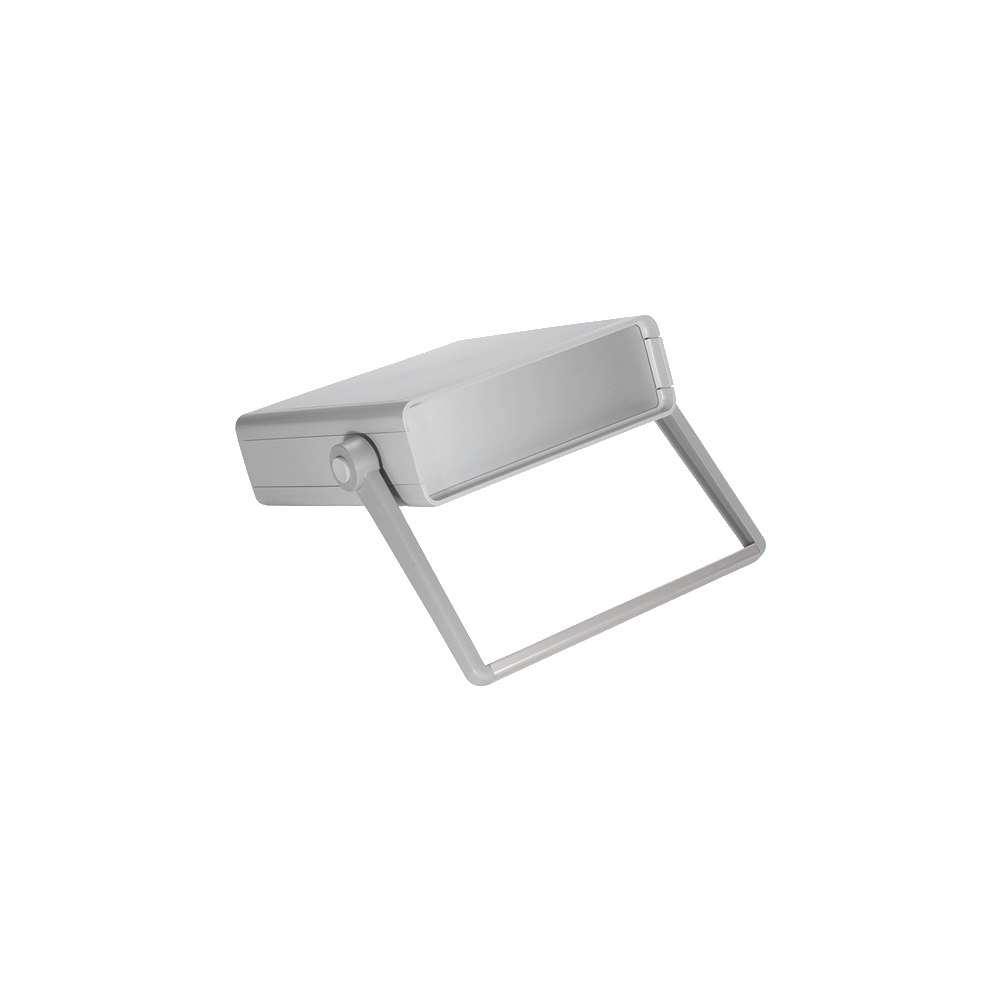

Portable Equipment Clamshell case in Light Grey Fire Retardant ABS Size 220x230x70

$80.28 ex VAT

Excluding VAT

(Price per pack of 1)
Part Number 75-201088 Categories ,
  • Moulded in Grey fire retardant ABS material.
  • Clamshell style enclosure with removable end panels for simplified assembly and test.
  • Modular construction using side spacers and a rigid fixing system screwed together through the base of the housing .
  • the front panels have 2 positions in the moulding allowing the standard 1.6mm Aluminium panel or a 3mm thick aluminium or plastic panel to be fitted.
  • The carry handle is supplied ready assembled instrument cases.
  • The carry bar of the handle incorporates a recess that can be used for ID label& rsquo;s or other information
  • The maximum force on the handle should not exceed 200N or 20.3Kgf.

Price per pack of:

1

Colour:

Light Grey

Material:

ABS UL94-VO

Type:

IDAS

Max Length:

220mm

Max Width:

230mm

Max Height:

65mm

PCB Length:

215mm

PCB Width:

220mm

PCB Height:

90mm

Assembly Method:

Screws

Options:

i/o panels

Attributes:

Carrying handle

from 4 pcs.from 6 pcs.from 11 pcs.from 21 pcs.
$76.26 + VAT$72.25 + VAT$68.23 + VAT$64.23 + VAT
