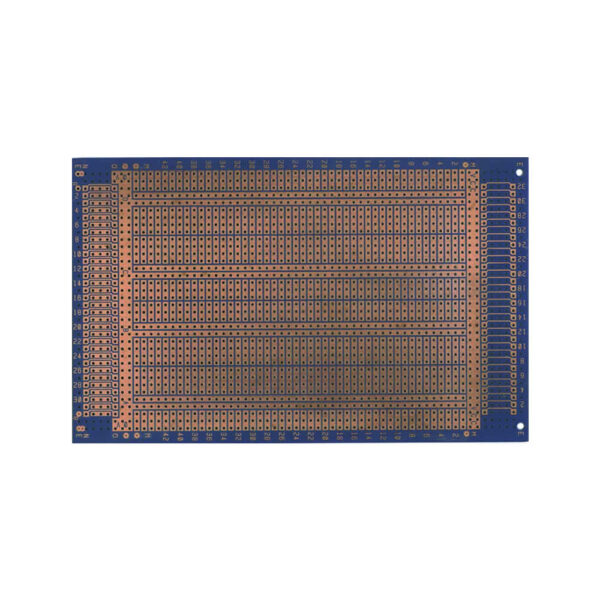

Double Sided 100×160 Part No. 10-2845

Double Sided 100×160 Part No. 10-2845

3U double sided Prototyping board with ground plane for DIN41612 connectors. Grid pattern provided for easy location aswell as solder resist coating.

£35.84 ex VAT

Excluding VAT

(Price per pack of 1)
Part Number 10-2845 Category

27 in stock

  • 3U Eurocard format double sided PCB from copper clad FR4 material UL94 V0 rated.
  • 0V ground plane provided.
  • Suitable for use with all IEC297 card frames.

    • Suitable for use with all IEC297 card frames.

  • Designed to be totally flexible with grid print included for easy location ID.
  • Solder resist applied to prevent solder bridging.
  • DIN 41612 64 & 96 way connector positions front and rear.
  • Single sided (without ground plane) and PTH versions are available.

Price per pack of:

1

Length:

160mm

Max Length:

100mm

Max Width:

160mm

Pattern:

Microboard

No. of Sides:

Double sided

Microboards.pdf
from 4 pcs.from 6 pcs.from 11 pcs.from 21 pcs.
£34.05 + VAT£32.25 + VAT£30.47 + VAT£28.67 + VAT
