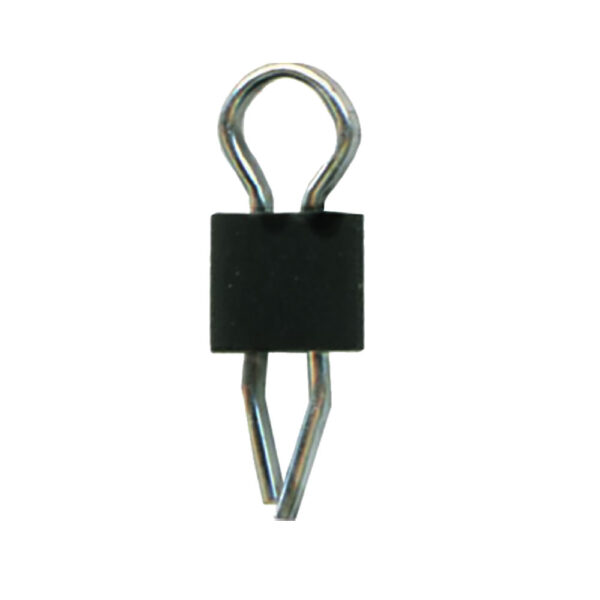

PCB Test Point – Loop Terminal Assembly for 1.32mm dia. Hole Long Tail – Black Part No. 20-313145

PCB Test Point – Loop Terminal Assembly for 1.32mm dia. Hole Long Tail – Black Part No. 20-313145

PCB Test Point Terminal for 1.32 Nominal Holes used for attaching leads for test scopes and probes with scintered glass insulator this component is for boards more than 1.6mm thick – colour Black

£17.80 ex VAT

Excluding VAT

(Price per pack of 100)
Part Number 20-313145 Category

135 in stock

  • PCB Test Point Terminal assembly designed for attachment of scope probes etc.
  • Extended lead length for thicker PCB’s up to 2.4mm.
  • The compliant pin design allows the terminal to be inserted without damaging the hole plating.
  • The terminal will remain in place even when the board is inverted for soldering.
  • The sintered glass bead has a recommended maximum working temperature of 475C. This exceeds all current standard temperature profile requirements.
  • Assemblies are available in 8 standard colours.
  • Material Specifications: Bead: Boro Silicate Sintered Glass, Wire Loop Material: Phosphor Bronze (BS2873)  Plating: Electroplated Bright Tin: 3.0-5.0 micron. .

Price per pack of:

100

Colour:

Black

Hole Size:

1.32mm

PCB thickness:

>1.6mm

from 6 pcs.from 11 pcs.from 26 pcs.from 51 pcs.
£16.91 + VAT£16.02 + VAT£15.57 + VAT£15.13 + VAT
