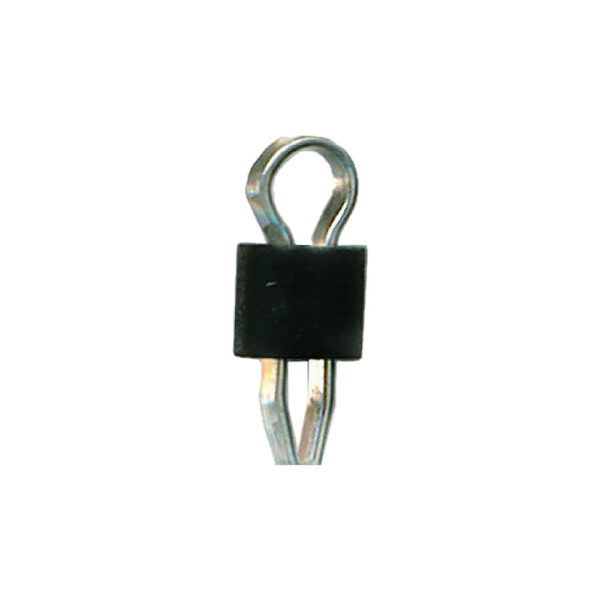

PCB Test Point Terminal for 1.32 Nominal Holes used for attaching leads for test scopes and probes with scintered glass insulator – colour Black
1114 in stock
PCB Test Point Terminal assembly designed for attachment of scope probes etc. The compliant pin design allows the terminal to be inserted without damaging the hole plating. The terminal will remain in place even when the board is inverted for soldering. The sintered glass bead has a recommended maximum working temperature of 475C. This exceeds all curent standard temperature profile requirements. Assemblies are available in 8 standard colours. Material Specifications: Bead: Boro Silicate Sintered Glass, Wire Loop Material: Phosphor Bronze (BS2873) Plating: Electroplated Bright Tin: 3.0-5.0 micron.
Price per pack of:
100
Colour:
Black
Hole Size:
1.32mm
PCB thickness:
<1.6mm
| from 6 pcs. | from 11 pcs. | from 26 pcs. | from 51 pcs. |
|---|---|---|---|
| £16.91 + VAT | £16.02 + VAT | £15.57 + VAT | £15.13 + VAT |
