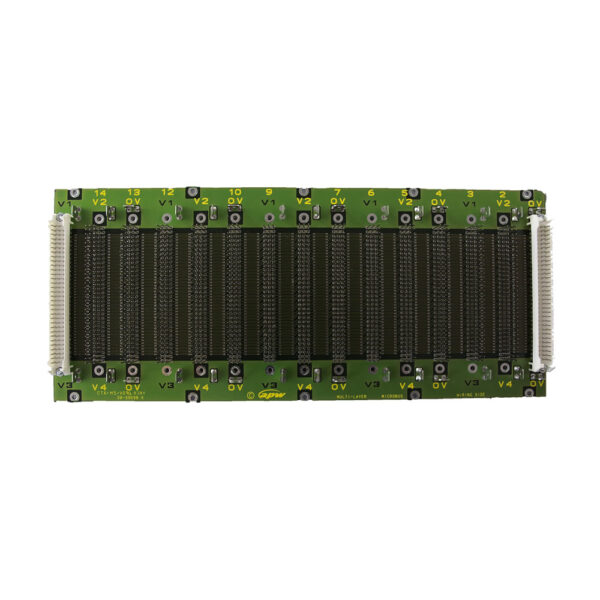

15 Slot Multilayer Microbus backplane for 96-96 Part No. 38-39106

15 Slot Multilayer Microbus backplane for 96-96 Part No. 38-39106

15 Slot 60 HP wide� Multilayer Microbus backplane� with connector positions on 4HP (20.32mm centres) and supplied as assembled with�rear shells on slots 1 and 15.

£583.07 ex VAT

Excluding VAT

(Price per pack of 1)
Part Number 38-39106 Category

1 in stock

  • Multilayer PCB with 0V ground plane made from FR4 material UL94 V0 rated.

    • 0V guard tracking between all signal traces

  • Flexible power rail construction with up to 4 Vcc rails.
  • Fully assembled with Din 41612 connectors and faston power connectors.
  • Connectors on 4Hp pitch.
  • Dimensionally compatable with IEC 297.
  • Theroretical Characteristic impedance (Zo) = 100 Ohms +/- 5%.
  • PCB nominal tghickness 2.4mm.
  • Signal trace width is designed as 0.38mm.

Price per pack of:

1

Length:

128.6mm

Width:

303mm

Max Length:

303mm

Max Width:

128mm

Features:

Connected to voltage planes

No. of Layers:

Multilayer

No. of Slots:

15

Pitch of Slot:

4 HP (20.32 mm)

Connector Body:

96/96

Multilayer_Microbus_Backplanes.pdf
from 4 pcs.from 6 pcs.from 11 pcs.from 16 pcs.
£553.92 + VAT£524.77 + VAT£495.60 + VAT£466.45 + VAT
