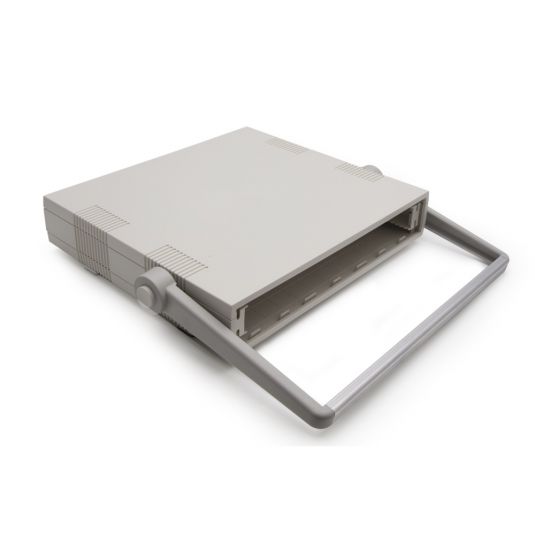

Portable Equipment Case IBX Style B Size 275x250x50 part number 500-54750

Portable Equipment Case IBX Style B moulded in UL94 rated ABS in light Grey Size 275x250x50

£31.64
Availability: In stock
Part Number
500-54750
(Price per pack of
1
  • Strong and easily assembled enclosures moulded in Fire Retardant ABS, for circuit boards, power supplies, interconnections, controls and displays.
  • 4 individual sizes in heights from 25mm to 100mm in 25mm increments.
  • Three largest size Cases are suitable for either desktop Type A or portable Type B applications.
  • Portable version accept a strong tilt and swivel carrying handle ordered separately and can be locked in increments of 30 degrees.
  • The Aluminium Handle cross bar also incorporates a label recess.
  • Horizontal and vertical PCB guides are incorporated internally.
  • Horizontal guides being suitable for 6U Eurocard of either 160 or 220mm depths.
  • Four self-adhesive PCB mounting clips are supplied with each case positioned accurately using the reference grid moulded into the case.
  • A range of plastic sloping front panels and captured or screw-on anodised aluminium panels are available separately.
  • Each IBX case comes supplied with four moulded non-slip feet which allow units to be safely stacked on each other.
  • This range can be moulded in a range of other standard colours if required
  • These cases can be modified to your requirements - email us details for a quotation
  • Can be used with our standard case accessories
More Information
Price per pack of 1
Type IBX
Assembly Method Screws
Features Carrying handle option
PCB Width 240mm
PCB Length 233mm
PCB Height 69mm
Width mm 275mm
Colour Light Grey

Volume Pricing

Please contact us for larger volume pricing.

QuantityPrice
Inc VATEx VAT
4+ 36.07 30.06
6+ 34.18 28.48
11+ 32.27 26.89
21+ 30.37 25.31
