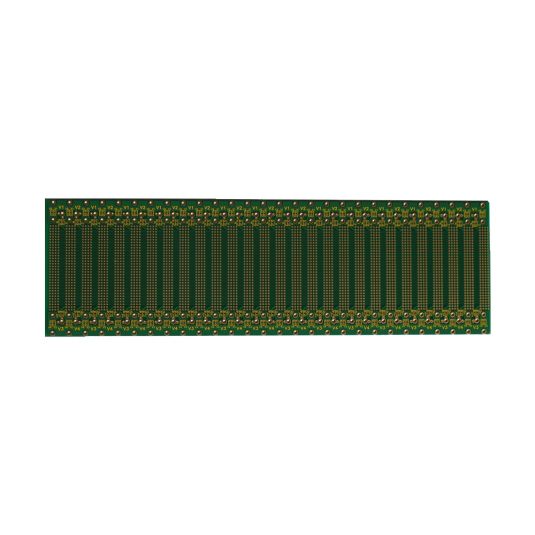

28 Slot Backplane for 96 way connectors part number 222-63633 - PCB Only

28 Slot uncommitted backplane  with connector positions on 3HP (15.24mm centres) and supplied as a bare board but can also be supplied assembled with either solder or pressfit connectors.

£203.36
Availability: In stock
Part Number
222-63633
(Price per pack of
1
  • Double sided PTH PCB manufactured from 1.6mm FR4 with 35micron copper laminate.
  • Designed to be totally flexible with pin allocations left to the user.
  • Each pin position is bussed across all connector positions.
  • Power connection is by M3 studs or fastons.
  • Choice of widths, connector pitching and number of slots
  • Can be supplied assembled and tested to suit your requirements please contact sales for a quotation.
  • Meets the dimensional requirements for IEC card frames.
More Information
Price per pack of 1
Width mm 130mm

Volume Pricing

Please contact us for larger volume pricing.

QuantityPrice
Inc VATEx VAT
4+ 231.83 193.19
6+ 219.62 183.02
11+ 207.43 172.86
16+ 195.23 162.69
