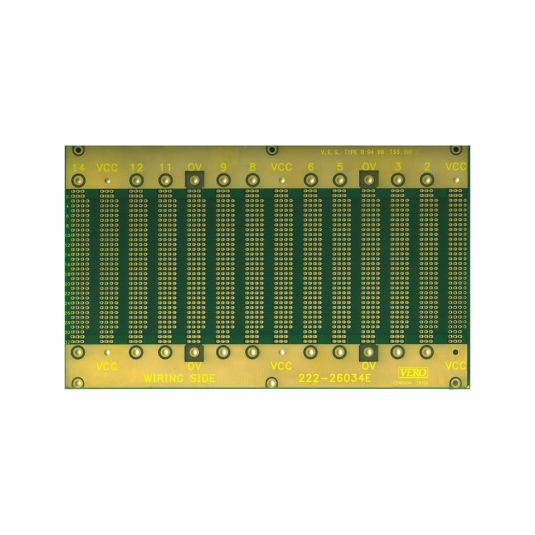

222-26034 96-96 Way Version 14 Slot 42HP PCB only

14 Slot uncommitted backplane  with connector positions on 3HP (15.24mm centres) and supplied as a bare board but can also be suplied assembled with either solder or pressfit connectors.

£106.05
Availability: In stock
Part Number
222-26034
(Price per pack of
1
  • Double sided PTH PCB manufactured from 1.6mm FR4 with 35micron copper laminate.
  • Designed to be totally flexible with pin allocations left to the user.
  • Each pin position is bussed across all connector positions.
  • Power connection is by M3 studs or fastons.
  • Choice of widths, connector pitching and number of slots
  • Can be supplied assembled and tested to suit your requirements please contact sales for a quotation.
  • Meets the dimensional requirements for IEC card frames.
More Information
Price per pack of 1
Width mm 130mm

Volume Pricing

Please contact us for larger volume pricing.

QuantityPrice
Inc VATEx VAT
4+ 120.9 100.75
6+ 114.54 95.45
11+ 108.17 90.14
16+ 101.81 84.84
21+ 95.45 79.54
50+ 89.09 74.24
101+ 82.72 68.93
